Home ＞ Sensor Solutions ＞ Sensor Module ＞ EJ-R603 11*19 mm Infrared Spout Sensor PCB

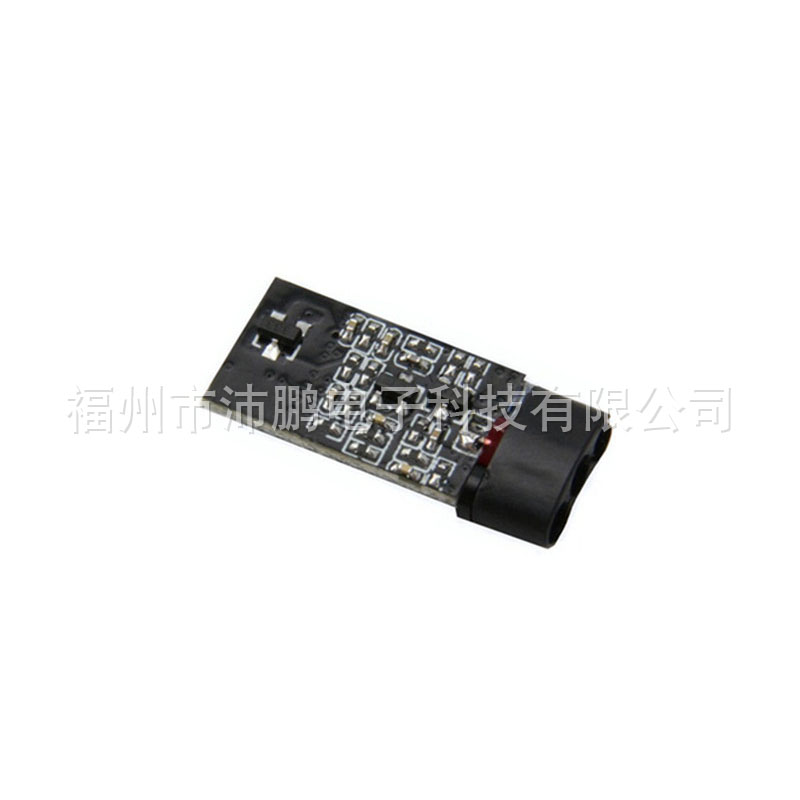

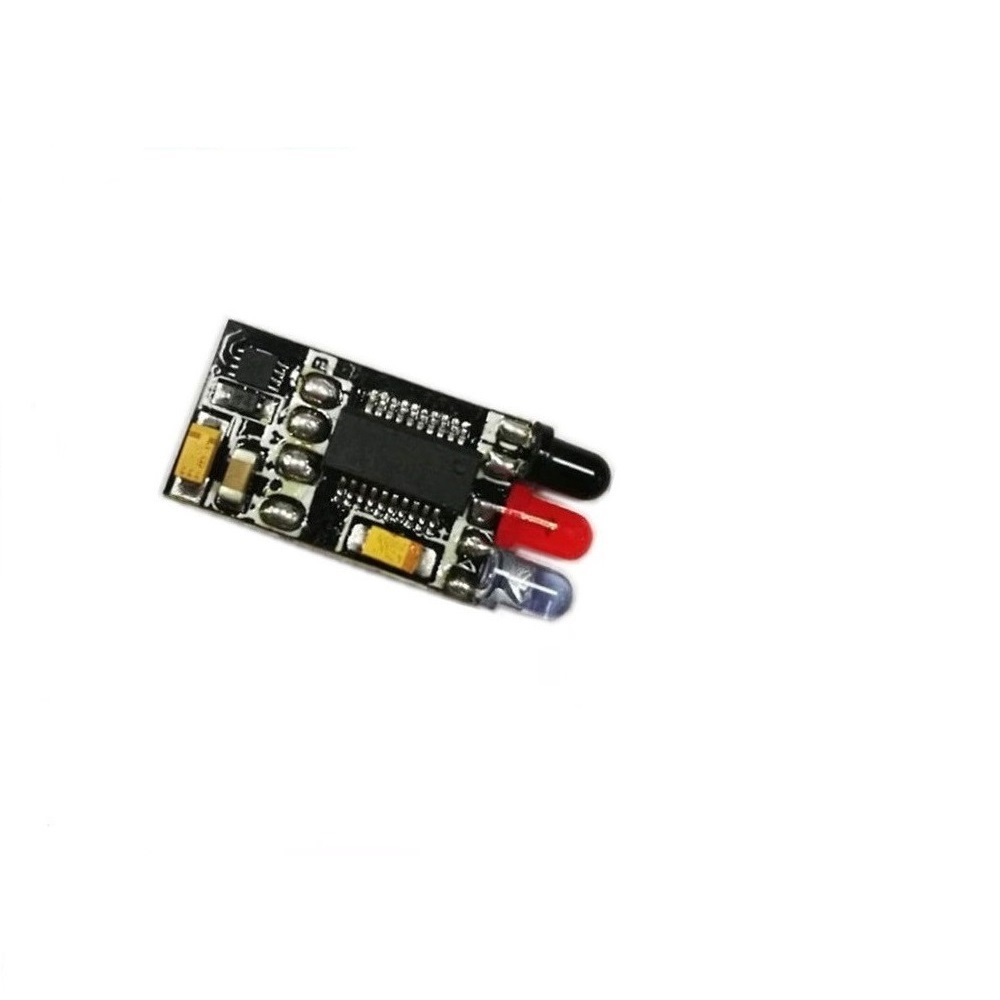

EJ-R603 11*19 mm Infrared Spout Sensor PCB

Publish time 2020-07-08 10:45

商品信息

Applications

OEM sensors and relevant parts for automated water control applications in different industrial sectors.

Applications:
Water control applications
Water dispensers
Automatic flushing
Power management

Products Description

Parameter:

Model number:	EJ-B603
Working voltage:	DC 4.5V- 6.6 V
Adjustable detection range:	Water sensor；5-280 mm
Sensitivity:	0.25 S (adjustable)
Power consumption:	< 20 uA
Maximum output current:	800 mA
Output:	Pulse /Analog
Low voltage alarm:	< 4.5 V
Pulse:	35 ms, 45 ms (adjustable)
Directive:	2014/30/UE, FCC PART 15B

Automatic Infrared Spout Sensor Circuit

Activated by the motion movement
Automatically adjusts the detection distance.
With stable performance in indoor and outdoor environments.
Optional operating modes and outputs for specific applications.
Low power consumption
