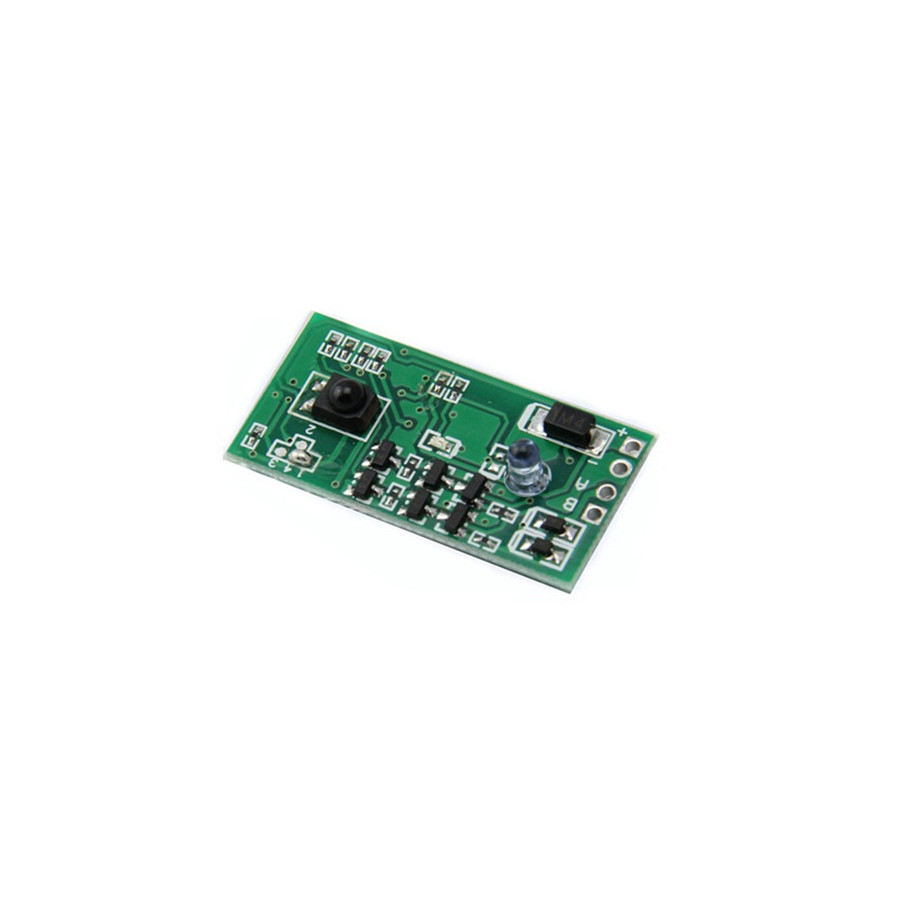

EH-B651 Sensor PCB
    Publish time 2020-07-08 10:34

Product Feature

◆ Withstand strong electromagnetic and light interference

◆ Parameters and applications with flexible customization

◆ Easy to use and install, with mature technology and stable performance

◆ Dynamic control of power consumption according to the frequency of use

◆ Adopt active infrared ranging technology



Technical parameter

Working voltage:

DC 4.5 V-6.6 V (±1%)

Static current:

20uA

Sensitivity:

0.2S

Adjustable detection distance:

0-90 CM (adjusted through the remote or APP)

Low voltage alarm:

< 4.5 V

Pulse:

45ms (off) , 35ms(on)

Switch off delay:

0.5S

Maximum output current:

800mA
