EJ-R604 Touchless Faucet Sensor PCB
    Publish time 2020-07-08 10:39

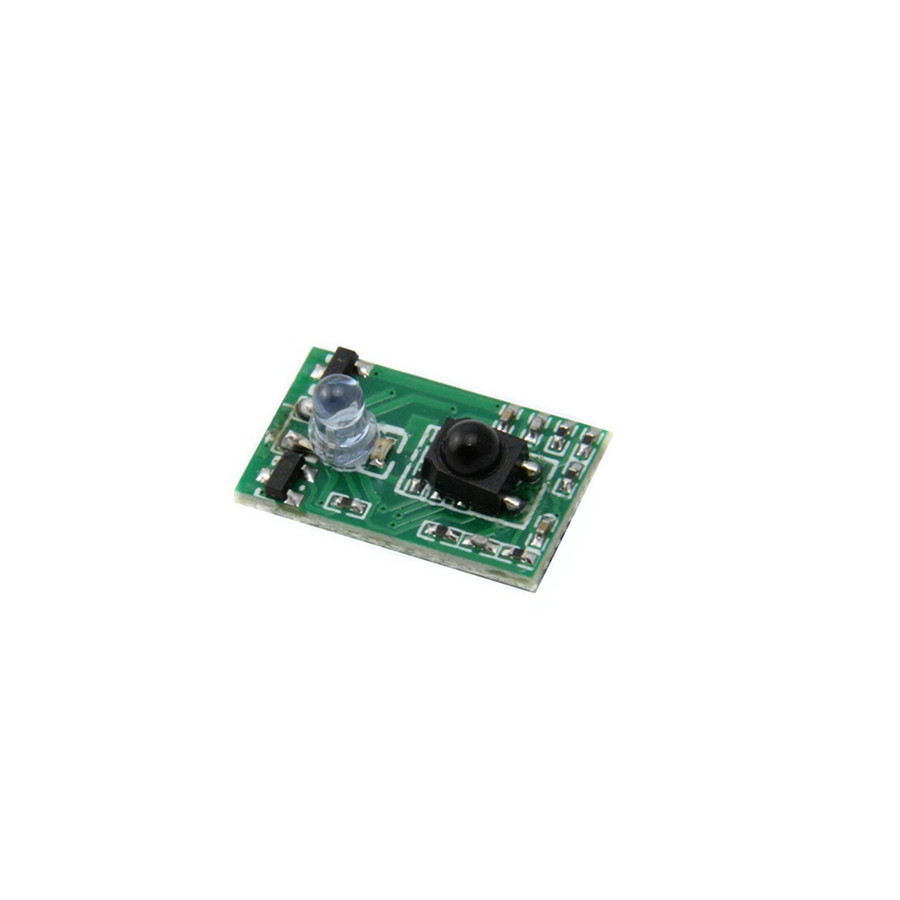

EJ-R604 Touchless Faucet Sensor PCB
Applications


OEM sensors and relevant parts for automated water control applications in different industrial sectors.

Applications:
Water control applications
Water dispensers
Automatic flushing
Power management

Products Description

Parameter:


Model number:
EJ-R604
Working voltage:
DC 4.5V- 6.6 V
Adjustable detection range:

Water sensor;5-300 mm   400-850 mm

Smart home: 0-900 mm

Sensitivity:
0.25 S (adjustable)
Power consumption:
< 20 uA
Maximum output current:
800 mA
Output:
Pulse /Analog
Low voltage alarm:
< 4.5 V
Pulse:
35 ms, 45 ms  (adjustable)
Directive:
2014/30/UE,  FCC PART 15B



Touchless Faucet Sensor Circuit

Activated by the motion movement
Automatically adjusts the detection distance.
With stable performance in indoor and outdoor environments.
Optional operating modes and outputs for specific applications.

Low power consumption
