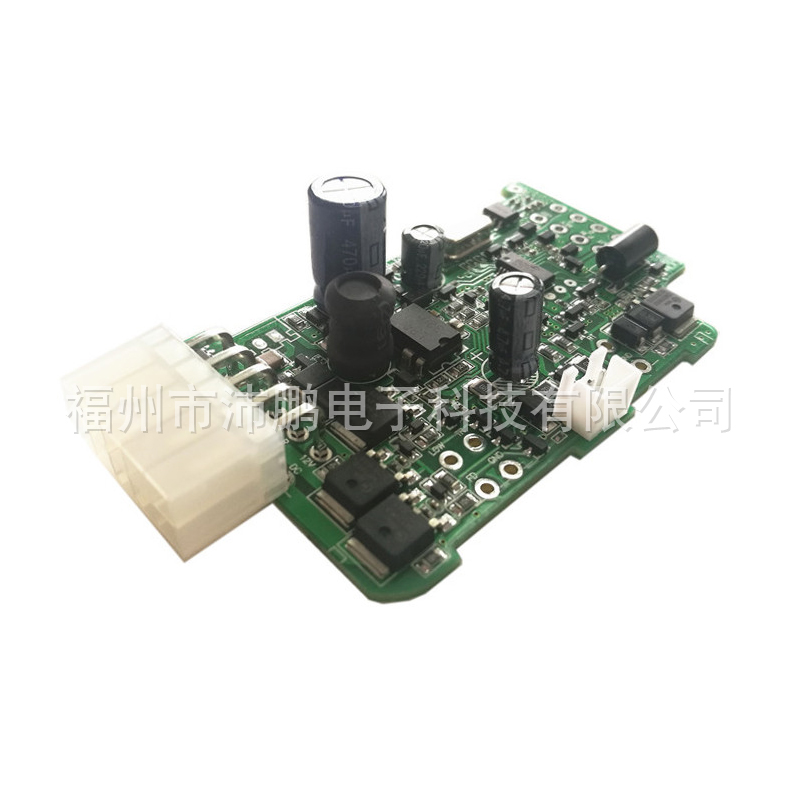

Technical parameters: (The main unit circuit)

Working frequency:

433.92 MHZ (frequency stabilization)

Working voltage range:

12V, 36V-72V

Static current:

≤ 10 MA

Remote distance:

≥30 meters (under open field)

Electric start maximum continuous current:

< 5 A

Method for receiving a signal:

Superheterodyne receiver

Receiver sensitivity:

-107 dBm

Working temperature:

-30℃---80℃

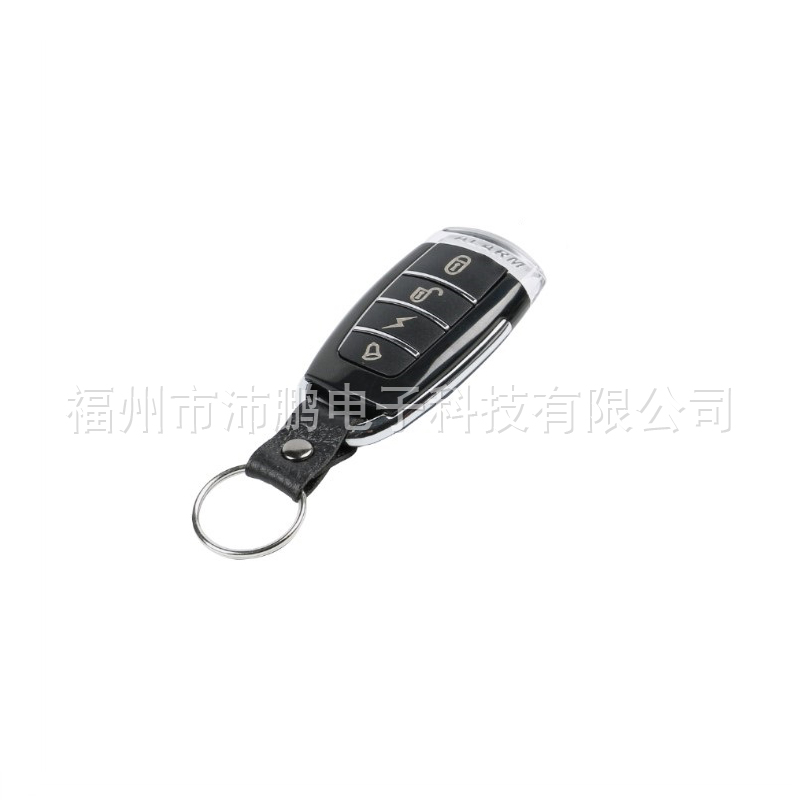

Parameters: ( PKE remote controller)

Induction frequency:

125 KHZ car levels low frequency induction

MCU:

Microchip

PKE sensing distance:

1.5 meters

Induction direction:

X, Y, Z(Three-axis antenna)

Power supply:

3V
