Home ＞ Sensor Solutions ＞ Toilet System ＞ EJ-P0021 Touchless Auto Toilet Flush Sensor

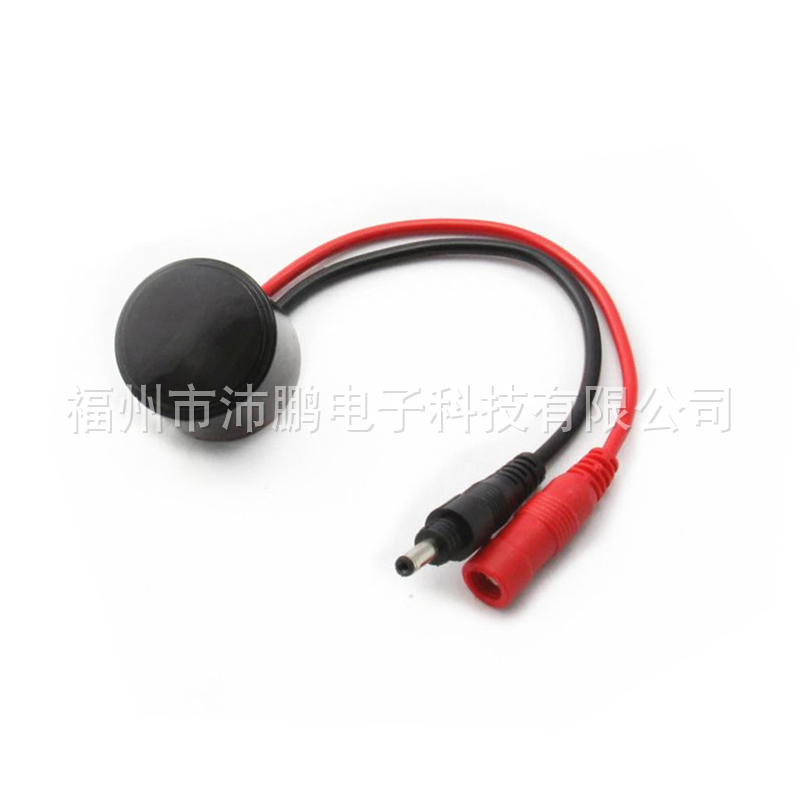

EJ-P0021 Touchless Auto Toilet Flush Sensor

Publish time 2020-07-22 11:11

商品信息

Applications

PEPE produces sensors and control units for OEM manufacturers of electronic faucets & toilets, and home appliances.

Applications:
Water control applications
Water dispensers
Automatic flushing
Power management

Product Description

OEM Touchless Automatic Urinal Flush System

With stable performance in indoor and outdoor environments

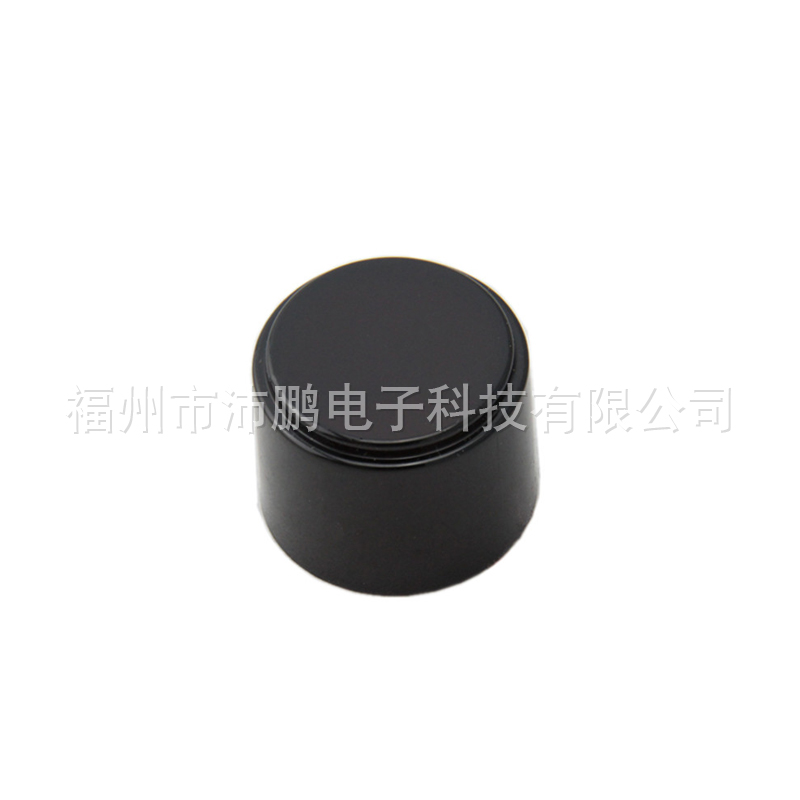

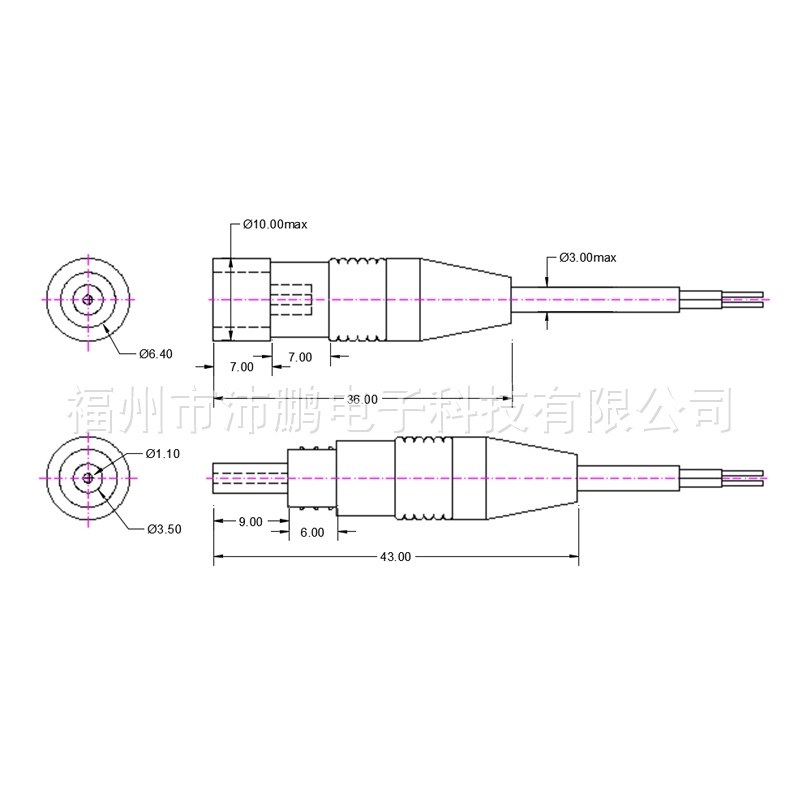

Available sensor covers and connectors in different shapes
Optional operating modes and outputs for specific applications.
Available operating modes are controlled via sensors or buttons.

Model number:	EJ-P0021
Technology:	Active Infrared
Power supply mode:	DC 4.5V-6.6V
Detection range default setting for different applications: (adjustable)	Water sensor: 5-300 mm 400-850 mm Smart home: 0-900 mm
Adjustable working distance :	0-90 CM
Response time:	1S
Stand-by consumption:	<20 uA
Maximum output current:	800mA
Low voltage alarm:	< 4.5 V
Signal pulse:	45 ms (adjustable)
Ingress protection:	IP 67
Directive:	2014/35/EU, 2014/30/EU， FCC PART 15B
