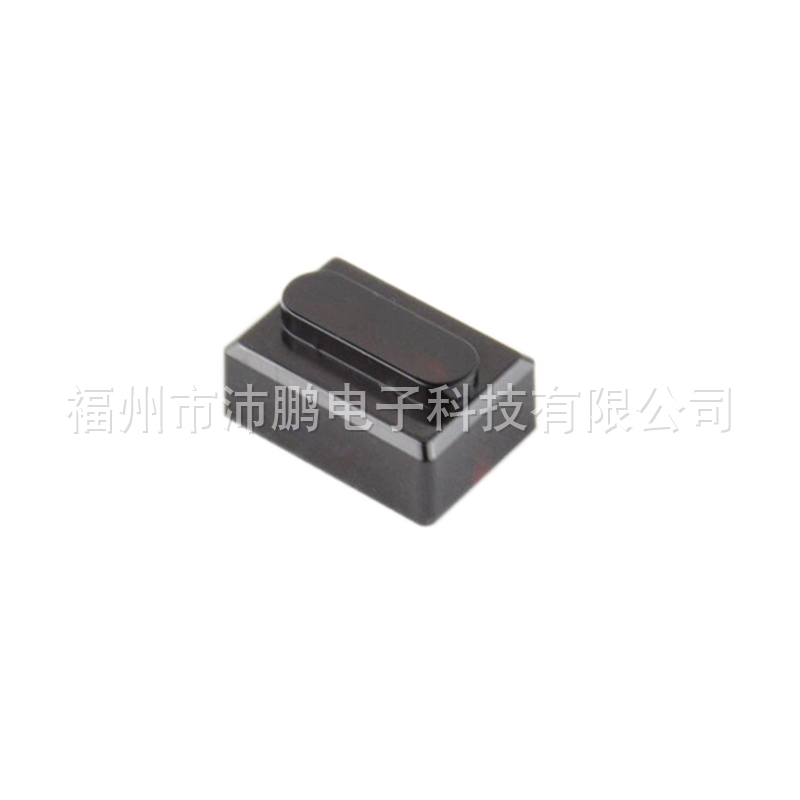

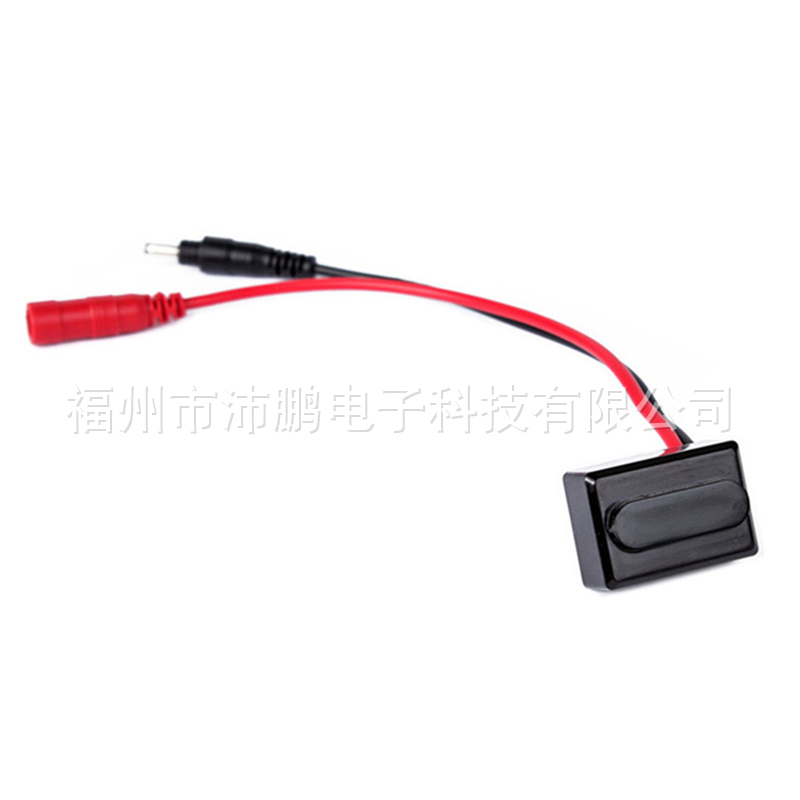

EJ-P0022 Touchless Automatic Urinal Toilet Sensor

Hello, welcome to Fuzhou PEPE Electronics Technology Co., Ltd.

EC-E3004 Electric Bike Alarm System And Horn / Sharing Bike Electric Scooter Alarm Security System
EC-M8051 Motorcycle Alarm System Motorcycle Auto Smart Key Keyless Entry Motorcycle Alarm System
EC-E8041 Electric Bike Keyless Enter Alarm System Keyless Entry System For Electric Scooter Bikes
EC-E8010 Electric Bike Push Start Stop Button With Alarm System
EC-E2001GB Electric Bike Alarm System

Hot search：

Product Center

Publish time 2020-07-22 11:23

FEATURE

Fast, accurate distance-ranging detection.

Single power supply.

Anti-vibration and shock.

Works with various types of cover materials

Reliable water and humidity-proof circuit that provides accurate control for all electrical parts.

Model number:	EJ-P0022
Technology:	Active Infrared
Power supply mode:	DC 4.5V-6.6V
Detection range default setting for different applications: (adjustable)	Water sensor: 0-350 mm 350-850 mm Smart home: 0-900 mm
Adjustable working distance :	0-90 CM
Response time:	1 S
Stand-by consumption:	<20 uA
Maximum output current:	800mA
Low voltage alarm:	< 4.5 V
Signal pulse:	45 ms (adjustable)
Ingress protection:	IP 67
Directive:	2014/35/EU, 2014/30/EU， FCC PART 15B
